100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting

  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
  • 100mm IP67 Waterproof RGBW LED Point Light with DMX512 Control for Outdoor Facade Lighting
Luogo di origine Guangdong, Cina
Marca Miracle Bean
Certificazione CE RoHs
Numero di modello XH-G10021P24 (RGBW) -D1A
Quantità di ordine minimo 100 pezzi
Prezzo negotiate
Imballaggi particolari Cartone
Tempi di consegna 3-15 giorni
Termini di pagamento T/T, Western Union, L/C
Capacità di alimentazione 50000 pezzi al mese
Dettagli
Articolo Sorgente luminosa puntiforme LED indirizzabile DMX512 Modello XH-G10021P24 (RGBW) -D1A
Misurare 100 mm Sorgente luminosa a led SMD3535
LED Chip Qty 21pcs Energia Massimo 5,8 W
Tensione in ingresso CC 24 V Protocollo di controllo DMX512
Colore RGBW Angolo del fascio 160 °
Grado di protezione IP IP67 Lunghezza del filo Standard da 120 mm (personalizzabile)
Temperatura di lavoro -20 ℃ ~+60 ℃ Durata 50000 ore
Garanzia 2 anni Tipo di installazione Superficie montata
Applicazione Illuminazione esterna per facciate di edifici
Evidenziare

DMX512 Addressable RGBW IC Control

,

1.5W SMD3535 Point Light Source

,

30mm IP67 Outdoor LED Pixel
Lasciate un messaggio
Descrizione di prodotto
100mm IP67 DMX512 Addressable RGBW LED Point Light SMD3535 24V for Building Facade Outdoor Lighting

Professional DMX512 addressable LED point light source featuring SMD3535+IC chipset with 4 high-brightness LED beads, 16.7M RGBW colors, and 65536-level grey scale for ultra-smooth color transitions at 30fps. IP67 waterproof rated with UL certified 2220 copper wire for permanent outdoor architectural lighting installations.

Technical Specifications
Model XH-G10021P24(RGBW)-D1a
Size 100mm
LED Light Source SMD3535
LED Chip Quantity 21pcs
Rated Power Max 5.8W
Input Voltage DC 24V
Control Protocol DMX512
Pixel Per Channel 5
Color RGBW
Beam Angle 160°
IP Rating IP67
Working Temperature -20℃ ~ +60℃
Wire Length 120mm Standard (Customizable)
Life Span 50000 Hrs
Warranty 2 Years
Key Features
  • RGBW Colors: 65536-level grey scale per channel delivers cinematic-quality color depth and smooth transitions
  • SMD3535+IC Integrated Chipset: Built-in driver IC reduces external component count and simplifies wiring
  • 21 High-Brightness LED Beads: Delivers max 5.8W output with excellent luminance for outdoor visibility
  • IP67 Waterproof Rating: Fully sealed for permanent outdoor installation in rain, snow, and extreme environments
  • Wide Operating Range: Functions reliably from -20℃ to +60℃ for global deployment
  • 120mm Standard Wire with Customization: Default 120mm wire length adaptable to project-specific requirements
Applications

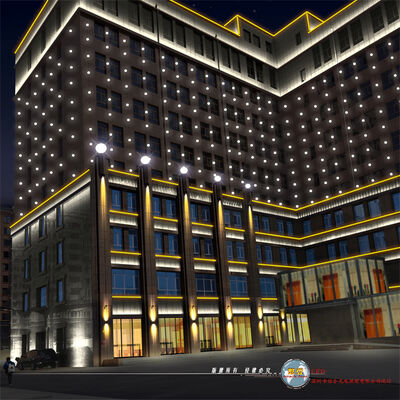

  • Building Facade Lighting and Media Facades
  • Bridge and Landmark Architectural Illumination
  • Commercial Plaza and Shopping Mall Decorative Lighting
  • Theme Park and Entertainment Venue Dynamic Displays
  • Stage Backdrop and Large-Scale Grid Screens
  • Outdoor Bar Screens and Mesh Display Systems
Our Services
  • Guaranteed 24-hour response time
  • Comprehensive English communication for all inquiries
  • OEM & ODM services available
  • Distributorship programs for proprietary designs and select standard models
  • Structured protection of sales territories, design IP, and confidential data
  • Lifelong technical support commitment
  • Optimized delivery framework: Stock models dispatched immediately, samples shipped upon payment, bulk orders fulfilled within 7 business days, custom projects within 15 business days
Trade Details
Payment Methods T/T, Western Union, Paypal, L/C
Port Shenzhen
Delivery Time 3-5 days for stock models; 7 working days for bulk orders; 15 working days for OEM/ODM orders
Packing Packed in carton
Shipping By air, by sea, express are supported
