Dettagli del prodotto
Luogo di origine: Guangdong, Cina
Marca: Miracle Bean
Certificazione: CE ROHS
Numero di modello: XH-800W-24V
Termini di trasporto & di pagamento
Quantità di ordine minimo: 50 pezzi
Prezzo: negotiate
Imballaggi particolari: cartone o legno
Tempi di consegna: 5-15 giorni
Termini di pagamento: T/T, Unione Occidentale
Capacità di alimentazione: 50000 pezzi al mese
1Oem: |
disponibile per i progetti di pacchetti dei clienti |
2Tipo: |
Constant Voltage Mode Power |
3Categoria: |
Alimentatore LED impermeabile IP67 CC 12V |
4Materiale a guscio: |
Alluminio |
5Applicazione: |
Esposizione di LED, residenziale |
6Corrente massima: |
33 A CC |
7Tensione di uscita: |
24 V DC |
8Tasso IP: |
IP67 |
9Tensione in ingresso: |
180-264 V CA |
10Servizio: |
OEM e ODM |
Oem: |
disponibile per i progetti di pacchetti dei clienti |
Tipo: |
Constant Voltage Mode Power |
Categoria: |
Alimentatore LED impermeabile IP67 CC 12V |
Materiale a guscio: |
Alluminio |
Applicazione: |
Esposizione di LED, residenziale |
Corrente massima: |
33 A CC |
Tensione di uscita: |
24 V DC |
Tasso IP: |
IP67 |
Tensione in ingresso: |
180-264 V CA |
Servizio: |
OEM e ODM |

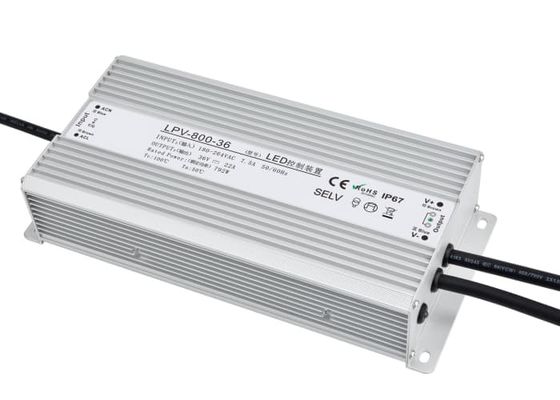

Wide Voltage IP67 Waterproof Switching Power Supply Constant Voltage Compact Size 800W 24V 36V 48V LED Driver
Product Description
| Model |
XH-FY800W-240-1 |
|
| DC output voltage | 24V | |
| Rated output current | 32A | |
| Output current range | 0~32A | |
| Ripple and noise | 180mVp-p | |
| DC output power | 800W | |
| Efficiency | 93.5% | |
| Input voltage |
180-264VAC |
|
| Working temperature and humidity | -20~+60 centigrades 20-90% RH non-condensing(waterproof) | |
| Store temperature and humidity | -40~+85centigrades 10-95% RH | |
| Weight | 1.64kg | |
| Input frequency | 50-60Hz | |
Product Advantages of Power Supplies
1. Stable Output: Delivers consistent voltage and current, effectively protecting connected devices from damage caused by power fluctuations.
2. High Efficiency: Boasts high energy conversion rate (often 85%+), reducing energy waste and lowering overall operating costs.
3. Wide Compatibility: Works with various input voltages (e.g., 100-240V AC) and supports multiple device types, meeting diverse usage needs.
4. Reliable Protection: Equipped with over-voltage, over-current, short-circuit, and over-temperature protection, enhancing safety and durability.
5. Compact & Portable: Small in size and light in weight, saving installation space and facilitating easy movement or carrying.
Our Advantages
Our Services
FAQ
2. Q: How long is the warranty period?
A: 2 Years
3. Q: How long is the delivery time?
A: For sample orders, we can send out the products as soon as we get the payment; For big orders, usually the delivery time is within 7 working days;OEM and ODM orders, within 15 working days.
Product Show
![]()
![]()
![]()
