Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver

  • Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver
  • Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver
  • Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver
  • Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver
Luogo di origine Guangdong, Cina
Marca Miracle Bean
Certificazione CE ROSH EMC
Numero di modello XH-LPV-800W
Quantità di ordine minimo 1 pari
Prezzo negotiate
Imballaggi particolari Cartone animato o legno
Tempi di consegna 5-15 giorni
Termini di pagamento T/T, Unione Occidentale
Capacità di alimentazione 10000pici al mese

Contattami per campioni gratuiti e coupon.

WhatsApp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

In caso di dubbi, offriamo assistenza online 24 ore su 24.

x
Dettagli
Classe IP IP67/IP65 Nome degli elementi Alimentazione a LED
Materiale a guscio Lega di alluminio Temperatura operativa -20 ° C a 60 ° C.
Dimensioni del prodotto 265*120*56mm Certificazioni CE/FCC/ROHS
Potenza in uscita 800 W. Colore Argento
Protezione Corto circuito/temperatura superiore/carico Efficienza 94%
Lasciate un messaggio
Descrizione di prodotto

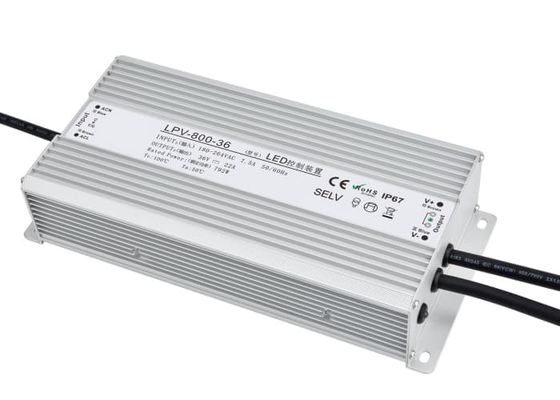

Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver

Product Description


Modle XH-LPV-800W
Output current range 24V/36V/48V/60V
DC output power 800W
AC Input Current

7.5A/230VAC
Store temperature and humidity -40~+85°10-95% RH
Working temperature and humidity -20~+60 centigrades 20-90% RH non-condensing(waterproof)
Dimesion

265*120*56mm(L*W*H)
Efficiency

94%
Weight

2.75kg



Description



The XH-LPV-800W series is a waterproof AC-DC LED driver. Engineered with constant voltage and constant power output, it functions with an AC input voltage spanning 180V to 264V. The entire series provides output voltage options of 24V, 36V, 48V and 60V.


Featuring a conversion efficiency of up to 94% and a fanless design, this driver relies on natural air cooling for operation, maintaining a case temperature range of -20℃ to +60℃. Its metal housing and high IP rating (IP65/IP67) enable the XH-LPV-650W series to be applied in both indoor and outdoor environments. Additionally, it is fitted with a 105℃ long-life aluminum electrolytic capacitor.


The XH-LPV-800W comes with full-range protection functions and can withstand 5G vibration. It complies with safety standards such as UL1012 and EN60950-1, and meets the energy-saving requirements of next-generation LED lighting. As a cost-effective option, it is suitable for a wide range of LED lighting applications.


Features

  •  AC Input Voltage: Ranges from 180VAC to 264VAC
  • Output Mode: Operates in both constant voltage and constant power modes
  • Protection Functions: Includes short circuit, overload, overvoltage, overtemperature protection, and other safeguards
  • Cooling Method: Adopts natural air convection cooling
  • Housing Design: Features an aluminum housing with a fully protective structure
  •  Protection Standard: Utilizes a full potting process, compliant with IP65/IP67 protection ratings, and suitable for both indoor and outdoor installation
  • Applicable Environment: Suitable for dry, humid, and rain-exposed conditions
  • Quality Testing: Subjected to 100% full-load burn-in testing before delivery
  • Core Advantages: Delivers high efficiency, extended service life, and excellent reliability
  • Warranty Service: Supported by a 3-year quality warranty
Our Advantages
  • We have more than 20 years’ experience
  • More than 100 foreign customers which have cooperated with our company for more than 3 years
  • Small MOQ, helping you to cooperate with our company step by step.
  • Warranty: 3 years warranty, as soon as we confirm the defective products,we will give new ones to customers in the following order
  • Solving the problems for customers directly.



Our Services

  • Replied in 24hrs
  • Answer all your enquires in fluent English
  • OEM & ODM are welcome
  • Distributoership are offered for your unique design and some our current models
  • Protection of your sales area, ideas of design and all your private informaton
  • Provide lifelong warranty
  • Fast delivery time: We will keep stock for some quantity of products;For samples orders,we can send out the products as soon as we get the payment;For big orders,usually the delivery time is within 7 working days;OEM and ODM orders,within 15 working days.

FAQ


1.Q;Why do you choose us?
A:We have over 20 years experience of design and produce led products for customers all over the world. We offer custom made led products with free design,and we have own factory as well as a research and design team,which can meet the diverse needs of our customers.

2.Q:Can I have a sample order for LED Power Supply?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

3.Q:Do you have any MOQ limit for LED Power Supply orders?
A: Low MOQ, 1pc for sample checking is available

Led Power Supply Show
Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver 0
Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver 1
Efficiency Efficiency Universal Outdoor 800W LED Power Supply Waterproof IP65/IP67 Constant Current LED Driver 2
